Instructions for Pricing/Ordering & Comments

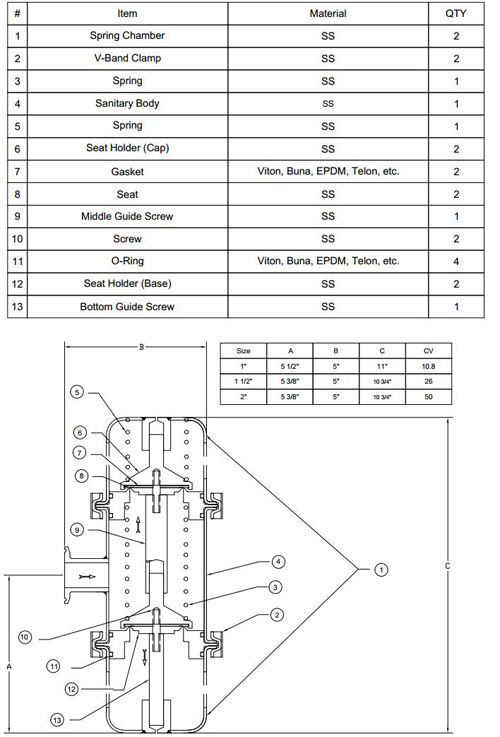

Choose a size, then a spring range. Select the proper body #1 and piston #2 group which also includes the spring guide #5. Then select the seat #3, which must also be suitable for the media used. The more elastic Buna, Viton, EPDM & Kalrez seats tend to seal off better (bubble tight) than the harder Teflon (PTFE) seats. Finally select the spring material #4, which usually is stocked in a type 302SS(18Cr-8Ni). After the customized selection is made, click to continue and instructions will be provided to either print or save the selection or to proceed with ordering the item on line. Printing the selection will not commit one to ordering the items selected. Should you have any questions on the product capability or product options, or are having difficulty in making the pricing selections or ordering, please contact us by e-mail or phone between 9AM-5PM Eastern time, Monday-Friday
To view pricing, typical ship schedules, or place an order, just click on a product tab and make your selection which you can customize. You may print or e-mail yourself a quote 24/7 without factory assistance, or send in a quote request for un-priced items. Check our stock list for quick deliveries.
To our valued customers, we are doing everything possible to keep our facility open and functioning during this Corona Virus. We are taking all recommended precautions necessary to keep our working environment safe and restricting access to our facility, wearing masks, taking temperatures and observing proper personal distancing. At this time, we have not experienced any critical material or manpower shortages to date and will try our best to meet all quoted or published delivery dates

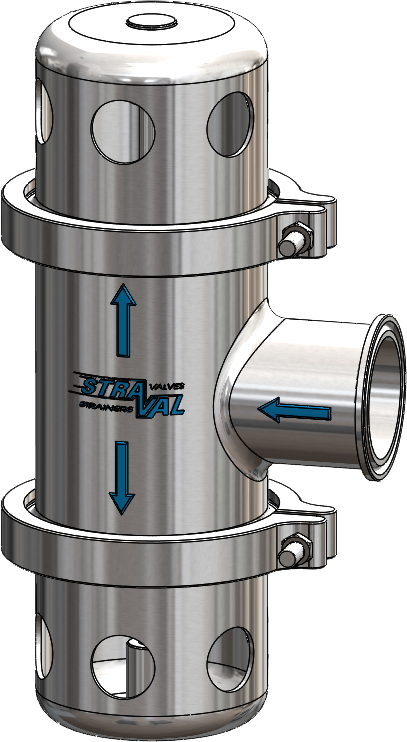

VRV20-TC Sanitary Vacuum Breaker | Vacuum Relief Valve
- All Stainless Steel standard.
- 1", 1 1/2", and 2" Sanitary Tri-clamp
- Opening pressures factory set to <2 PSIG. Relief Function, Vacuum set opening <4" Hg.
