To display pricing, print or e-mail a quotation or order, you must follow these basic steps:+
Click here for general instructions
1.) Select one of the product groups, spring range for Valves (Perf or mesh for Strainer products)
2.) Click on a spring Range and Cv (Valves) or Perf or mesh (Strainers). Options will now appear with price adders.
3.) If your pressure units are different from the ones listed, click on the units header "?" to convert.
4.) By placing your mouse over each option you will see a pop up display with helpful information including temperature limits for that material or option
5.) As you click on each option, you will see the subtotal change. You must click on all available options before proceeding to the next step.
6.) Click on the large "Continue" button to apply quantity and resale discounts, Print, E-mail the quote to yourself, or to Order. You will be given a resale discount code if you are an eligible reseller or OEM.
+ Click here for product-specific instructions- Close product-specific instructions
Pricing and Ordering information

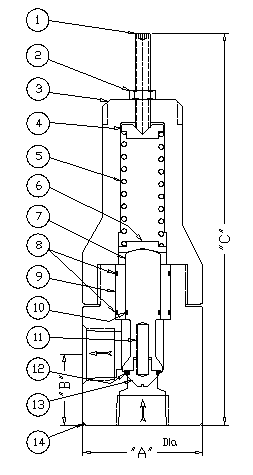

First select a size, then a spring range by clicking on the round circles. Then select the proper material for the body #8 and poppet #7 which are the only wetted materials in this valve. Next, select the proper piston seal material #9, which must also be suitable for the media used. The softer elastomeric seals produce a much closer band between crack and re-seating pressures. Normally Viton will handle most solvents, oils and chemicals. but operating temperature is limited . Next select the Spring chamber #3, spring hardware #1 & #2. The adjusting spring #5 is normally supplied as a type 302SS stainless steel which is completely protected inside the spring chamber and is not wetted or exposed to the flow media. These are all isolated (non-wetted) from the fluid media and should be selected based on the external environment the valve is exposed to. The standard spring chamber is PVC, but can be upgraded to CPVC or PVDF if the external environment requires it. After the customized selection is made, click to continue and instructions will be provided to either print or save the selection or to proceed with ordering the item on line. Should you have any questions on the product capability or product options, or are having difficulty in making the pricing selections or ordering, please contact us by e-mail or phone between 9AM-5PM Eastern time, Monday-Friday.
To view pricing, typical ship schedules, or place an order, just click on a product tab and make your selection which you can customize. You may print or e-mail yourself a quote 24/7 without factory assistance, or send in a quote request for un-priced items. Check our stock list for quick deliveries.
