To display pricing, print or e-mail a quotation or order, you must follow these basic steps:+
Click here for general instructions
1.) Select one of the product groups, spring range for Valves (Perf or mesh for Strainer products)
2.) Click on a spring Range and Cv (Valves) or Perf or mesh (Strainers). Options will now appear with price adders.
3.) If your pressure units are different from the ones listed, click on the units header "?" to convert.
4.) By placing your mouse over each option you will see a pop up display with helpful information including temperature limits for that material or option
5.) As you click on each option, you will see the subtotal change. You must click on all available options before proceeding to the next step.
6.) Click on the large "Continue" button to apply quantity and resale discounts, Print, E-mail the quote to yourself, or to Order. You will be given a resale discount code if you are an eligible reseller or OEM.
+ Click here for product-specific instructions- Close product-specific instructions
Instructions for Pricing/Ordering & Comments

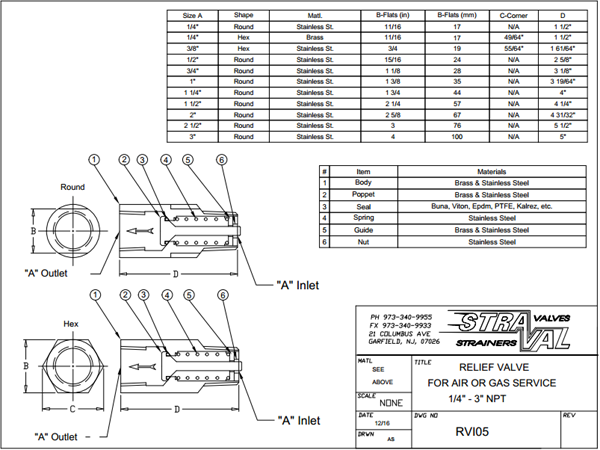

Choose a size, then a spring range. Select the proper body #1 and piston #2 group which also includes the spring guide #5. Then select the seat #3, which must also be suitable for the media used. The more elastic Buna, Viton, EPDM & Kalrez seats tend to seal off better (bubble tight) than the harder Teflon (PTFE) seats. Finally select the spring material #4, which usually is stocked in a type 302SS(18Cr-8Ni). After the customized selection is made, click to continue and instructions will be provided to either print or save the selection or to proceed with ordering the item on line. Printing the selection will not commit one to ordering the items selected. Should you have any questions on the product capability or product options, or are having difficulty in making the pricing selections or ordering, please contact us by e-mail or phone between 9AM-5PM Eastern time, Monday-Friday
To view pricing, typical ship schedules, or place an order, just click on a product tab and make your selection which you can customize. You may print or e-mail yourself a quote 24/7 without factory assistance, or send in a quote request for un-priced items. Check our stock list for quick deliveries.
To our valued customers, we are doing everything possible to keep our facility open and functioning during this Corona Virus. We are taking all recommended precautions necessary to keep our working environment safe and restricting access to our facility, wearing masks, taking temperatures and observing proper personal distancing. At this time, we have not experienced any critical material or manpower shortages to date and will try our best to meet all quoted or published delivery dates
