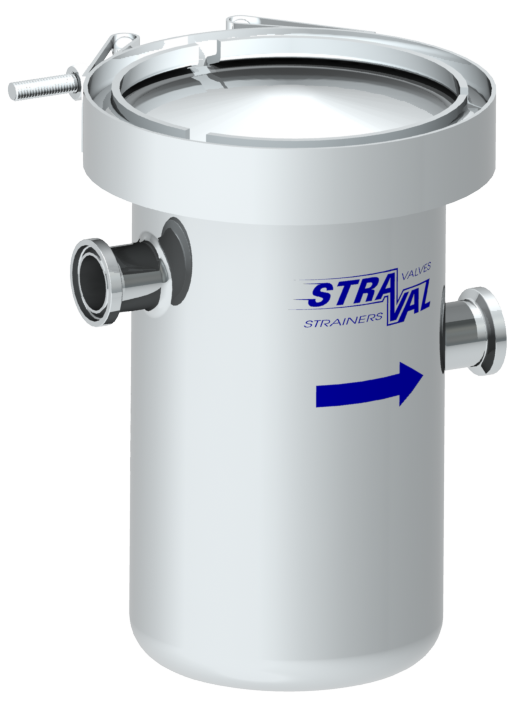

SBV05-TC Sanitary Tri-Clamp Basket Strainer

View Pricing/Ordering Instructions

view prices order

316 stainless steel
1/2"-2" Tri-Clamp
Stainless steel perf or mesh
Pressures to 150 PSI (10 Bar); temp to 300 °F (148 °C)
20 RA Surface Finish

Printable
Product Specs Instructions

SBV05-TC Sanitary Tri-Clamp Basket Strainer

view prices order

Printable
Product Specs Instructions

View Pricing/Ordering Instructions

316 stainless steel
1/2"-2" Tri-Clamp
Stainless steel perf or mesh
Pressures to 150 PSI (10 Bar); temp to 300 °F (148 °C)
20 RA Surface Finish

Applications

Features

Principle of Operation

Dimensions/Material Item List

This heavy-duty strainer is suitable for liquids, low-pressure steam, and gases, with operating pressures up to 150 PSI (10 Bar) and temperatures up to 300 °F (148 °C). It protects pipeline components such as pressure-reducing valves, relief valves, and other devices that require clean, filtered fluids for reliable operation.

The strainer basket is constructed of a heavy-duty stainless steel perforated element, with opening sizes ranging from 0.020" to 3/16". For applications requiring finer filtration, an optional stainless steel wire mesh can be added to capture particles down to 0.002". A V-band clamp allows for rapid removal and cleaning of the basket whenever clogging occurs.

Although not shown, similar models are available with NPT and 150# flange connections, and higher-pressure versions can be supplied for more demanding system requirements.

Body: Made from heavy-gauge 316 stainless steel for corrosive service.
V-band clamp for quick and easy removal and cleaning of basket.
Heavy-duty basket constructed of stainless steel perf and additional wire mesh as required.
Perf: Available from .020" to 3/16" openings.
Mesh: Available from 0.045” - 16Mesh,1143 Microns, down to 0.002” - 500Mesh, 25 Microns.
Gasket: Available in Viton, Buna, EPDM, and Teflon.
Parallel ports: Sanitary Tri-Clamp connections

The strainer operates with no moving parts, ensuring simple and reliable performance. Proper sizing for flow and pressure rating, as well as correct inlet and outlet piping, is essential for optimal operation. Flow enters through the port marked “Inlet”, passes through the basket from the inside out, and exits through the “Outlet” port. Under normal conditions, pressure drop across the basket is minimal. As the basket collects debris, resistance to flow increases, resulting in a higher pressure drop. If clogging becomes excessive, flow capacity decreases, and there is a risk of basket damage if the differential pressure exceeds the design limit. To prevent excessive pressure buildup or basket damage, a differential pressure gauge or monitor should be installed to show when the basket requires cleaning. Maintaining a clean basket ensures consistent flow, minimizes pressure loss, and protects downstream equipment from contamination and potential damage.

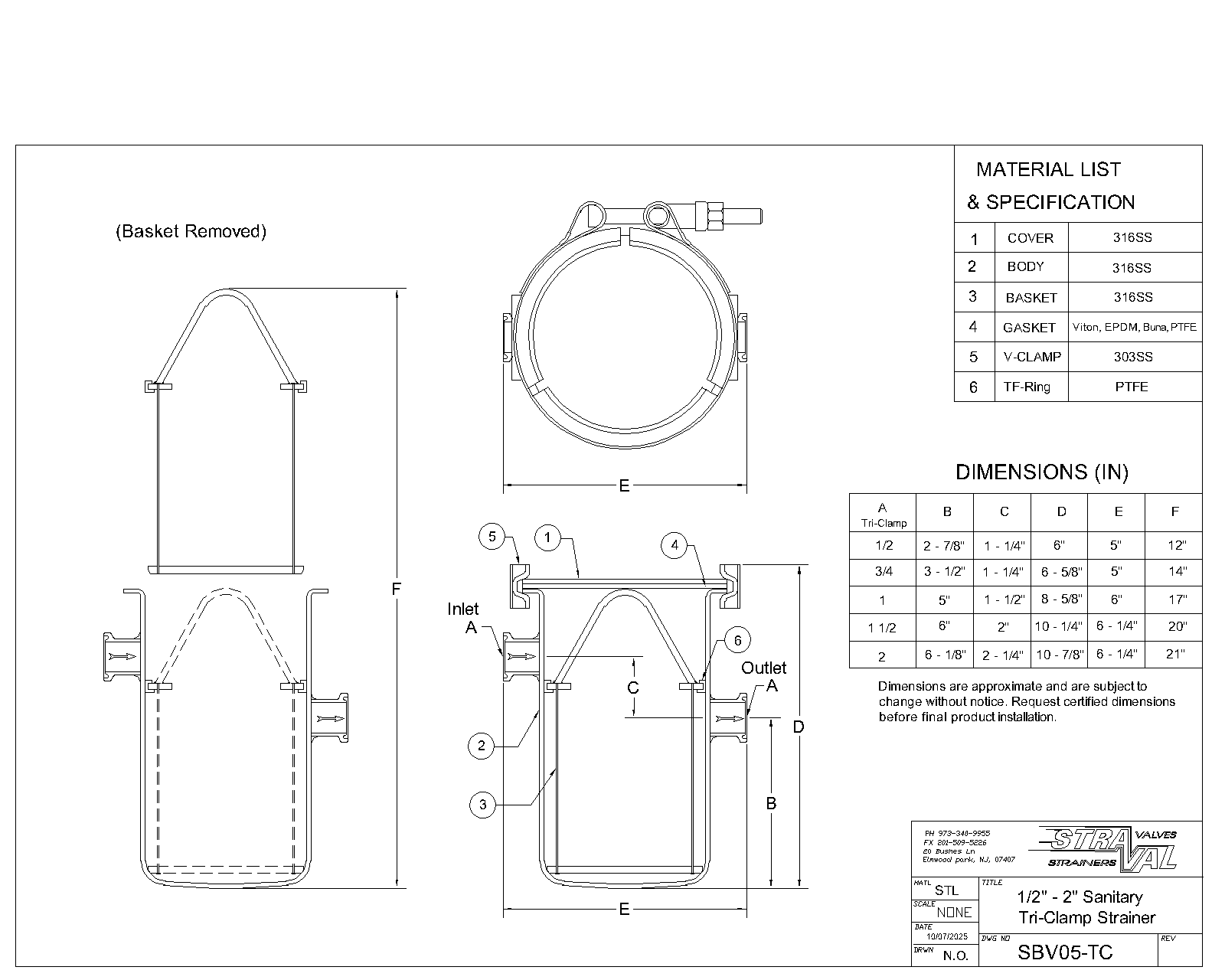

SBV05-TC

Material List and Specification

#	Item	Materials
1	Cover	316SS
2	Body	316SS
3	Basket	316SS
4	Gasket	Viton, EPDM, Buna, PTFE
5	V-Clamp	303SS
6	TF-Ring	PTFE

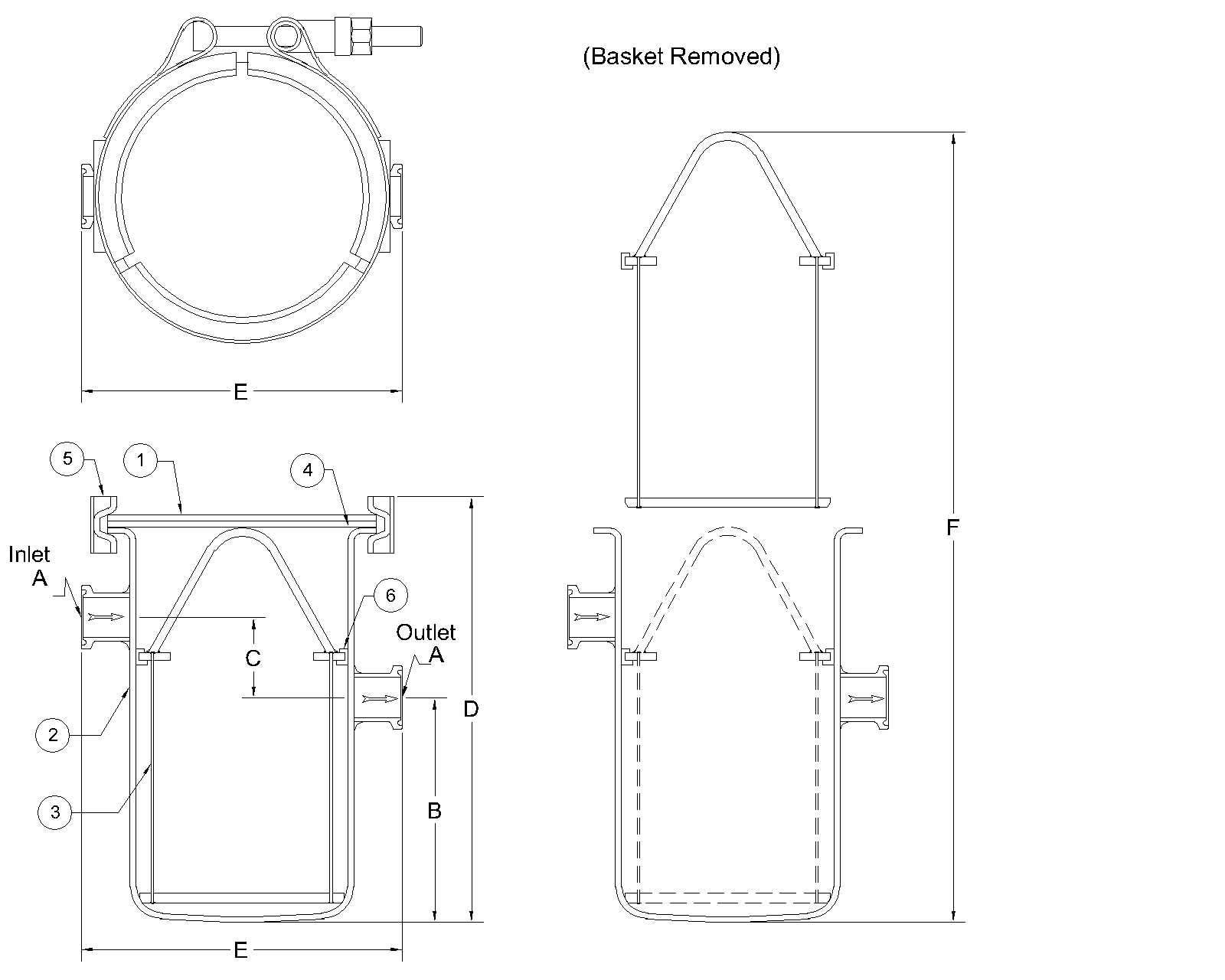

Dimensions

A Connection Size (TC)	B	C	D	E	F
1/2"	2-7/8"	1-1/4"	6"	5"	12"
3/4"	3-1/2"	1-1/4"	6-5/8"	5"	14"
1"	5"	1-1/2"	8-5/8"	6"	17"
1-1/2"	6"	2"	10-1/4"	6-1/4"	20"
2"	6-1/8"	2-1/4"	10-7/8"	6-1/4"	21"

*Dimensions are approximate and are subject to change without notice. Request certified dimensions before final product installation. *

Note: Dimensions are approximate and are subject to change without notice. Request certified dimensions before final product installation.
