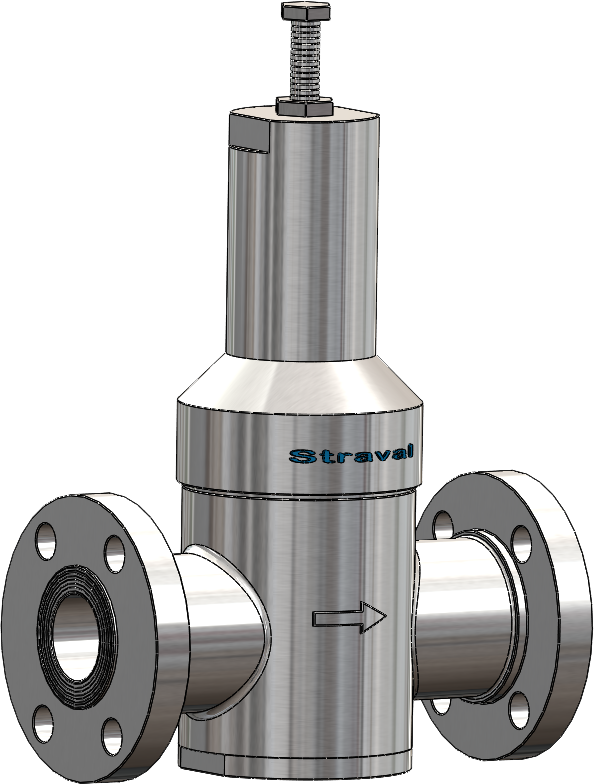

PRS-09i-FLG Stainless Steel 150# Flange In-Line Pressure Reducing Valve

View Pricing/Ordering Instructions

view prices order

Spring Diaphragm Operated
Piston Operated
1"-6" ANSI B16.5 RF flanged in-line
Max Rated Inlet Pressure 150 PSI (10.3 bar) Diaphragm Operated
Max Rated Inlet Pressure 270 PSI (19 bar) Piston Operated
Outlet pressures 8 to 80 PSI (~0.5-5.5 Bar) (multiple spring ranges) For higher outlet pressures see this pressure regulator (Model PRH09).

Printable
Product Specs Instructions

PRS-09i-FLG Stainless Steel 150# Flange In-Line Pressure Reducing Valve

view prices order

Printable
Product Specs Instructions

View Pricing/Ordering Instructions

Spring Diaphragm Operated
Piston Operated
1"-6" ANSI B16.5 RF flanged in-line
Max Rated Inlet Pressure 150 PSI (10.3 bar) Diaphragm Operated
Max Rated Inlet Pressure 270 PSI (19 bar) Piston Operated
Outlet pressures 8 to 80 PSI (~0.5-5.5 Bar) (multiple spring ranges) For higher outlet pressures see this pressure regulator (Model PRH09).

Dimensions/Material Item List

This is a direct-acting pressure-reducing valve with an adjustable spring operating against a flexible elastomeric diaphragm subjected to the reduced outlet pressure of the valve.

This valve is used for medium to low flow applications. See flow data below. For larger capacities refer to model PRS-09-FLG with offset flanges. Corresponding threaded NPT models are also available.

This valve can be used for water, air, gases, chemicals, solvents, and fluids including steam, depending on the materials selected (consult factory). Only clean, filtered, or strained liquids and gases should be used for best operation of the valve. A strainer or filter, depending on the degree of contamination, should be installed before the inlet of the valve. Strainers or filters can be purchased from Stra-Val to provide some degree of protection.

Unlike unbalanced pressure-reducing valves, this valve is a balanced inlet design and will work quite well on applications where the inlet pressure will fluctuate widely and will have little effect on outlet pressure.

This valve should not be used as a shutoff valve. If the valve is expected to be dead ended (having no flow passing through the valve) for prolonged periods, pressure at the inlet should be shut off, or a relief valve installed on the outlet side of the valve in case of excessive pressure buildup, reducing the life of the diaphragm or causing possible equipment damage downstream of the valve.

We now offer some models that meet NACE MR0175. These are not priced on line. Consult factory.

Select the valve size, spring range, material options in the customized pricing and ordering section indicated by the red arrows. You have the ability to customize your valve choices by selecting the wetted and nonwetted materials, and choice of seat materials to suit your shutoff requirements, using the softer seats for improved shutoff, particularly for air or gas applications. Once these selections are made a price quote can be generated and printed directly to your computer or immediately e-mailed to you.

Pressure-containing parts made from solid bar stock materials — unlike castings which have wall thickness variations.
Body and flanges: Standard material is type 316 stainless steel. Special alloys (e.g. Monel, titanium, and Hastelloy) also available.
Trim: Stainless steel for main valve and seat is standard. Teflon sealing option is also available for air or gas service.
Teflon-Viton composite reinforced diaphragm is rated pressure of 100 PSI and minimum burst pressure of 300 PSI. Teflon film on the wetted side provides good corrosion resistance to a wide range of fluids and gases including steam. Viton is the elastomeric backing on the non-wetted side and is rated to 350 °F for most applications. Buna backing is available for lower temperatures.
In-line flanges: 150 ANSI RF is standard for this model with face-to-face dimensions as illustrated. Custom flange facing can also be made available. Bolt holes straddle centerline. Standard inlet flanges and outlet flanges are equal in size. Unequal flange combinations (larger outlet than inlet) are also available to compensate for expansion of gases at reduced pressures.

This valve operates on the principle of balancing the spring force that is set by the user against the outlet pressure acting under the diaphragm. There is an internal pressure balancing port that subjects the outlet pressure directly to the underside of the diaphragm. When the outlet pressure falls below the set pressure required by the system on the outlet side of the valve, the spring force overcomes the force balance under the diaphragm causing the poppet and diaphragm assembly to drop down causing the valve to open and allow higher pressure from the valve inlet to pass through the valve. When the pressure rises to a sufficient level to restore the force balance against the spring, the valve will move toward the closed position. The valve is completely self regulating and the poppet is constantly moving to respond to pressure changes on the outlet side of the valve, not the inlet. The only time the poppet closes completely is when the outlet pressure has been reached to its set point. As long as the valve is able to shut off properly without solids or other material build up in the seat or because of seat wear, the valve should be able to maintain and hold the outlet pressure and keep it from rising for brief periods of time. If the valve is set with no flow passing through the system, there will be some droop (drop in outlet pressure) caused by relaxation of the spring when the valve first has to open. This occurs with all direct spring operated valves and can be compensated by making a slight readjustment to the set pressure once the desired capacity has been achieved.

Metal Seated RegulatorSee Below

PRS-09i-FLG 150# ANSI FlgMetal Seated

Material List and Specification

#	Item	Materials (Metal Seated)
1.	Adjusting screw	Steel or SS
2.	Lock nut	Steel or SS
3.	Spring chamber	Steel or SS
4.	Spring pusher	Steel or SS
5.	Adjusting spring	Steel or SS
6.	Main Valve	Steel or SS (303 or 316) or custom Alloys
7.	Lock nut	Steel
8.	Nut, diaphragm	Steel
9.	Diaphragm	PTFE / Viton
10.	Seal	Viton
11.	Body	Stainless steel (303 or 316) or custom Alloys
12.	Bottom plug	Stainless steel (303 or 316) or custom Alloys
13.	Seal	Viton (std)
14.	Lock washer	Steel or SS

All carbon steel parts upgradeable to St Stl

Dimensions (inch)

A	B	C	D
1/2	3	1.88	9.25
3/4	3	1.94	9.5
1	3.5	2.25	11.75
1-1/4	3.62	2.5	12.12
1-1/2	3.75	2.5	13.5
2	4	3.38	14.25
2-1/2	4.5	3.62	15.5
3	5	3.75	16

For Max Flow Cv data see Pricing pages

Note: Dimensions are approximate and are subject to change without notice. Request certified dimensions before final product installation.

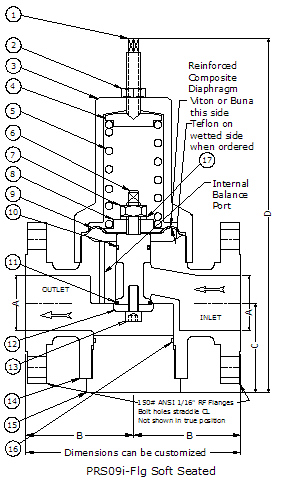

Soft Seated Regulator
See below

PRS-09i-FLG 150# ANSI
Soft Seated

Material List and Specification

#	Item	Materials- Soft Seated
1.	Adjusting screw	SS or upgrade
2.	Lock nut	SS or upgrade
3.	Spring chamber	SS or upgrade
4.	Spring pusher	SS or upgrade
5.	Adjusting spring	SS or upgrade
6.	Main valve	Stainless steel (303 or 316) or custom Alloys
7.	Lock nut	SS or upgrade
8.	Spring Carrier	SS or upgrade
9.	Diaphragm	PTFE / Viton or PTFE/Buna
10.	Seal, Piston	Viton, Epdm, Buna, Ptfe
11.	Seat, Elastomeric	Viton, Epdm, Buna, Ptfe
12.	Seat Holder	Stainless steel (303 or 316) or custom Alloys
13.	Screw	Stainless steel (303 or 316) or custom Alloys
14	Body	Stainless steel (303 or 316) or custom Alloys
15	Bottom Plug	Stainless steel (303 or 316) or custom Alloys
16	Seal	Viton, Epdm, Buna, Ptfe
17	Lock Washer	300 series St. Steel
