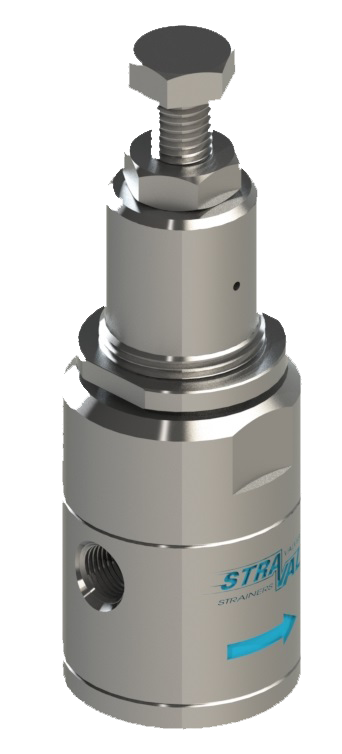

PRH-06-02T ECONOMY Stainless Steel High Pressure Regulator (Reducing Valve)

View Pricing/Ordering Instructions

view prices order

-Spring and Piston Operated

-¼” NPT Threaded

-Inlet Pressures Up To 6000 PSIG (410 BAR), Outlet Pressures From 0-2500 PSIG (0-170 BAR)

-In Line Serviceable

Printable
Product Specs Instructions

PRH-06-02T ECONOMY Stainless Steel High Pressure Regulator (Reducing Valve)

view prices order

Printable
Product Specs Instructions

View Pricing/Ordering Instructions

-Spring and Piston Operated

-¼” NPT Threaded

-Inlet Pressures Up To 6000 PSIG (410 BAR), Outlet Pressures From 0-2500 PSIG (0-170 BAR)

-In Line Serviceable

Applications

Options

Features

Principle of Operation

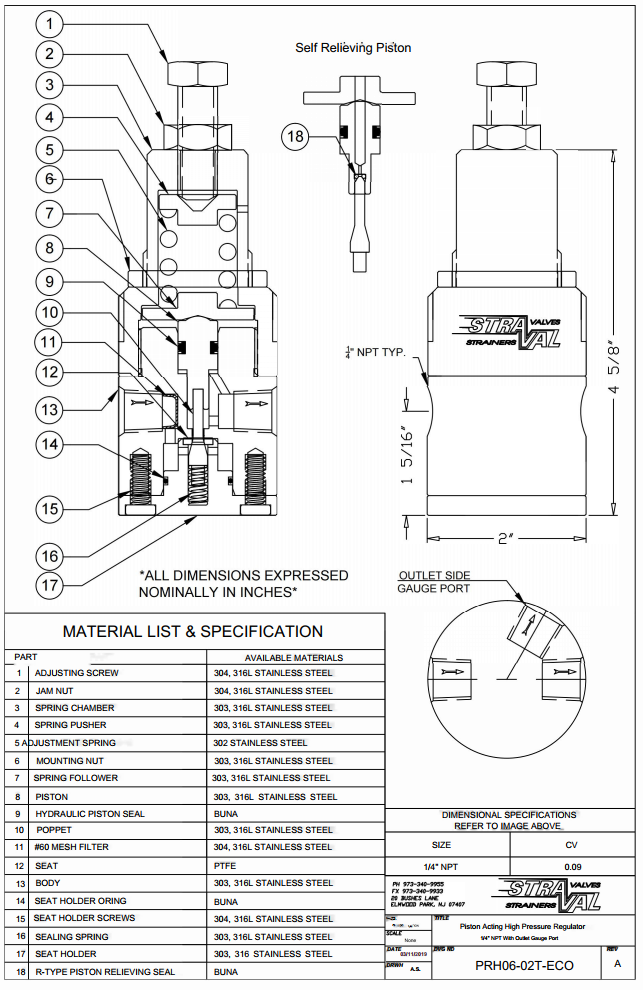

Dimensions/Material Item List

Designed for clean, filtered or strained, non-abrasive, non-harmful liquid and gas service: oils, lubricants, greases, solvents, non-fluorinated chemicals, inert and industrial gasses compatible with Buna and Teflon PTFE seals. This product is not intended for oxygen services. This type of regulator is commonly used in industrial applications providing steady pressure to equipment that would otherwise fail due to the incoming fluid pressures of tanks or its supply source. The valve is piston-operated and is capable of performing in any mounting position; vertical, horizontal etc. Reliable and economic solution for various pressure regulating applications.

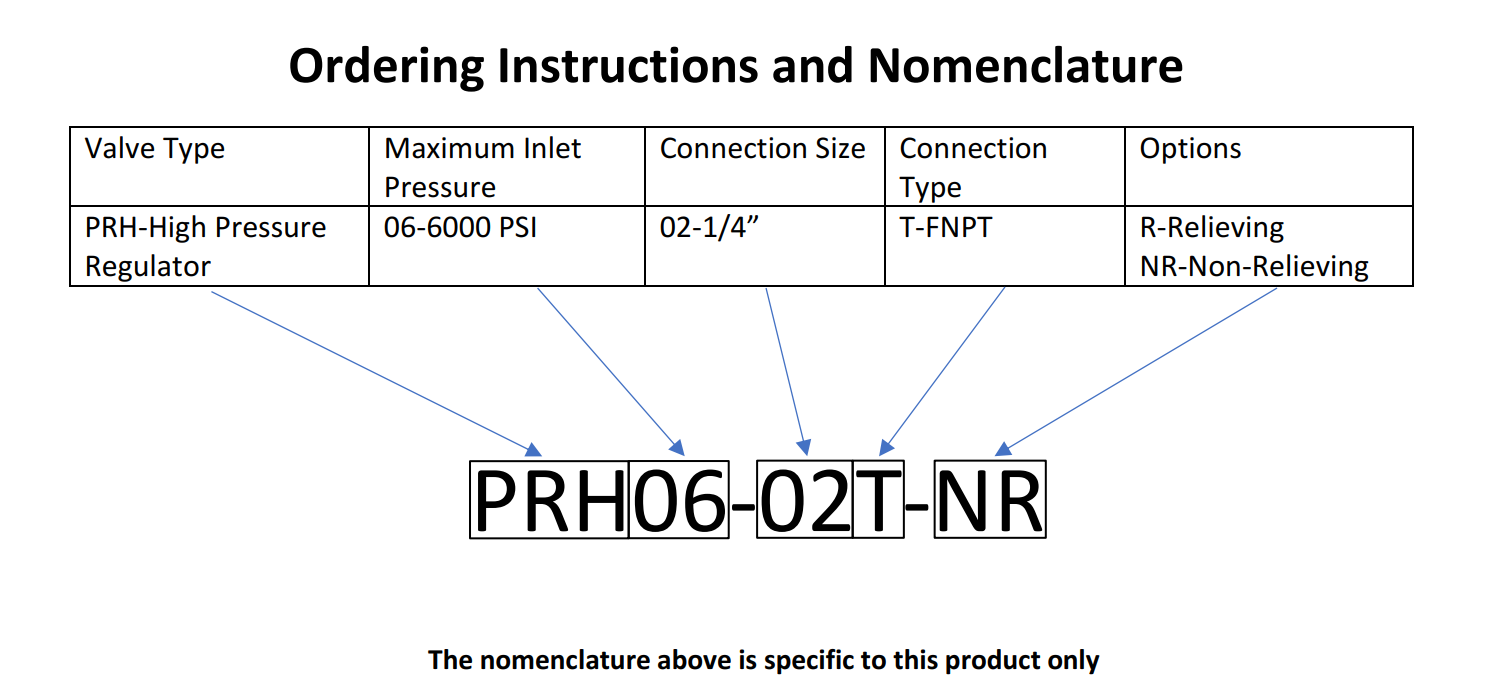

Self-relieving (R nomenclature) and Non-relieving (NR nomenclature) designs available
Wetted materials (8,10,12,13,17) in type 303 stainless steel.
Non-wetted materials (1,2,3,4,6,7) in type 303 stainless steel.

Pressure-containing parts made from solid bar stock materials — unlike castings which have wall thickness variations.

Body and trim: Standard material is type 316L stainless steel. An optional 303 stainless steel construction is offered at a reduced cost.
Hydraulic Piston Seal: Used for high pressure dynamic sealing applications where rolling and O-ring extrusion are common. This seal is superior to traditional O-ring configurations and is fabricated from durometer 70A (Hard) Buna elastomer assisted by two backup rings.
Spring chamber and adjusting spring: These parts are non-wetted, not in contact with the fluid or gas, and standard in 316L stainless steel. An optional 303 stainless steel construction is offered at a reduced cost.
Standard porting: In line NPT threaded porting with additional outlet gauge port. Valve works in any orientation, upright as illustrated, horizontal, etc.
Inline Serviceable: Capable of being serviced inline. The process lines must be depressurized before any servicing of this product. Changing the seat can be done by taking off only the bolted seat holder exposing the wetted components, (seat, piston, plug, etc.).
Inlet Strainer: Reliability and lifecycle are enhanced with fluids and gasses that contain no unwanted debris or large particulate. A #60 mesh strainer comes standard to ensure the integrity of the components.
Panel Mounting: Standard mounting nut gives the capability for the valve to be fixed to a control panel.
Other options: Self-relieving and non-relieving designs both available for purchase. The self-relieving design is provided at additional cost.

This valve operates with a compression spring acting on the main valve which is used to adjust the outlet pressure with an adjusting screw. The reduced outlet pressure is very easily adjusted in the field. To increase outlet pressure, simply loosen adjusting screw lock nut (2) to increase spring compression by turning the adjusting screw (1) clockwise. Similarly, to get a lowering in outlet pressure requires a reduction in spring compression by turning the screw counterclockwise. A pressure gauge can be fixed directly on the body of the valve to monitor outlet pressures. When changing the pressure set point, make sure a gauge is visible to safely monitor and control the desired adjustment. The valve will operate in a vertical orientation as illustrated, horizontal, or any other orientation.
